• PST2051D -  Rotator with controller (compare to T2X, G1000 good for tribander and 2 el 40 m Yag)

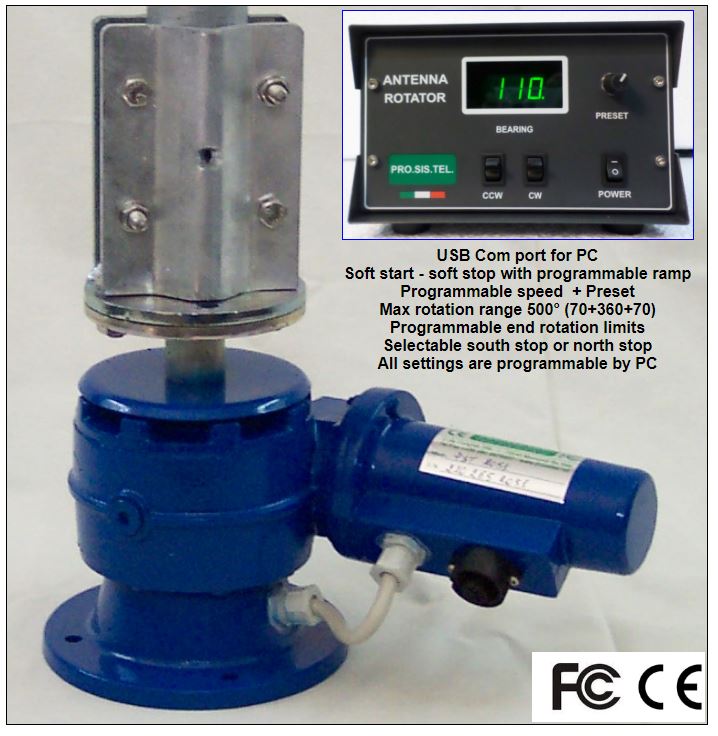

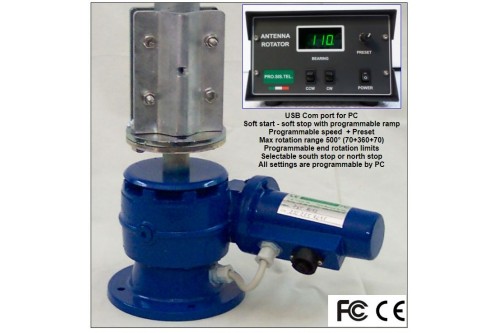

Pro.Sis.Tel PST 2051D rotator with controller. Wind area: 2.5 m2 (26.9 sqft). Vertical load: 650 kg (1433 lbs).

Heavy duty antenna Rotator, handle up 2.5 m2 (23 sq. Ft.) of antenna windload.

Worm-wheel technology irreversible under mast torque.

Large starting and braking torque

Soft start  e soft stop  with programmable ramp speed.

Two years warranty



Specifications:

-    Max wind load area                           2.5 m²

-    Braking torque                                   3.000Kgcm = 294Nm

-    Rotating torque                                  2000Kgcm = 196Nm

-    Max vertical load                                650Kg

-    Motor voltage                                    12 VDC

-    Rotating range                                   500° (70+360+70)

-    Rotation speed                                 ~ 90 seconds for 360°

-    Reading accuracy            ~                1%  no backlash

-    Antenna mast OD                               48-50mm

-    Operational temperature range (°C):       rotor unit          -40° ÷ +60°

                                                                         control box      -20° ÷ +60°

-    Storage temperature (°C):                         rotor unit          -40° ÷ +70°

                                                                           control box      -25° ÷ +60°

-    Control box power input                       230VAC (115VAC) , 50-60Hz, 50VA

-    Direction reading                                  Digital (potentiometer)

-    Limits                                                     Electronic, adjustable by software

-    Rotator cable                                         5 wires (2 x 1mm² + 3 x 0,5mm²)

-    Weight  (rotator only)                           ~ 10 kg


Some details:

- High strenght cast alluminium  gear box

- Rugged and proven design.

- Nickel chromium-molybdenum steel and bronze alloy gears

   running on balls bearings

- No maitenance, life lubrificated.

- Strength steel galvanized mast clamp.

- Stainless steel bolts.

- IP55


To see more of Pro.Sis.Tel rotators and manuals, click here



V322 Software

V322 Software Manuals

PST2051D -  Rotator with controller (compare to T2X, G1000 good for tribander and 2 el 40 m Yag)

  • Brand: Pro.Sis.Tel
  • Product Code: PST2051D
  • Availability: In Stock
  • $1,099.00
