Plug-in Preamp with HPF for combiners.
Very early SAL combiners did not have this feature.
The preamp is for any combiner, and is good to replace one that has been overloaded.

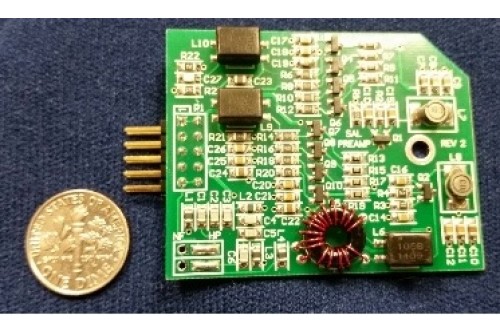

Preamplifier and High Pass Filter (HPF) board for old SAL antenna combiners.
By default the HPF is online. It will filter out the Broadcast Band Signals below 1.7 MHz. At the lower left corner of the board two strips of solder can be seen connecting the center terminals in the rectangles to the HP side (HIgh Pass Filter). If the reception of signals on the Broadcasting Band is needed, these two solder strips need to be removed and new ones should be placed from the center to the NF (No Filter) side.
For more information on this procedure, please see pages 33 and 34 of the SAL antenna manual. (Click here to download it)
日本語バージョン(JH5GHM訳)はこちらをクリックしてください。
For general information on the SAL antenna, click here
AS-SAL Preamp - Plug-in circuit board with HPF for combiners
- Brand: Array Solutions
- Product Code: AS-SAL-HPF
- Availability: 3 Weeks
-
$90.00
