• AS-419W - "BandPasser II". WARC bands (12 - 17 - 30 - 60 m ) four bandpass filters system

Four band (12 m, 17 m, 30 m and 60 m) Band Pass Filter System. Just as the AS-419 but for WARC and 60 m bands. Power Rating: 100 W CW / 200 W SSB

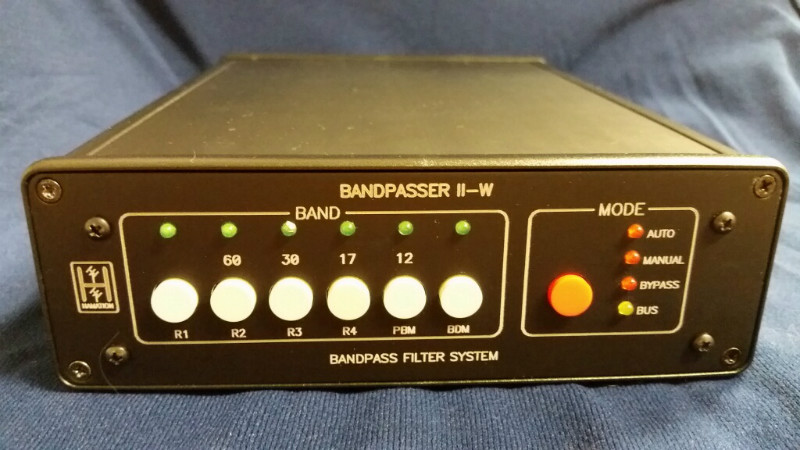

The new BandPasser II WARC System
The same features as the BandPasser II, but provides the 4 WARC band filters: 60m, 30m, 17m, and 12m. Power Rating: 100 W CW / 200 W SSB @1.5:1 SWR
Wires in series with your original Bandpasser, BandPasser II or FilterMax to give you all band coverage from 160 through 10m including the WARC bands!
Fully automatic filter selection with our BandMaster band decoders or with our Integrated 8-Pak and 4x8-Pak controllers.
In "per-band-mode", discrete bpf selection with other sourcing band decoders is supported.  In "band-data mode" it is fully compatible with Yaesu BCD band data - and ideal for the Elecraft K3! No band decoder needed for automatic band selection!

Features:

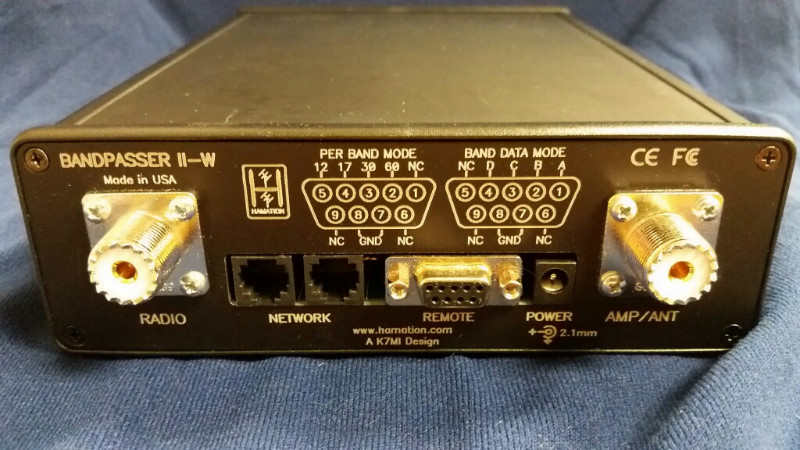

  • Can be driven by Per Band Mode (12 V DC to the pin) or Direct Band decoding
  • Direct Band Decoding throught the Band Data connector for Elekraft and Yaesu without the need of external band decoder.
  • Includes our shacklan control bus which can drive our antenna switch controllers to select antennas automatically.

12 m BPF insertion loss (S21) plot.

17 m BPF insertion loss (S21) plot.

30 m BPF insertion loss (S21) plot.

60 m BPF insertion loss (S21) plot.

AS-419W - "BandPasser II". WARC bands (12 - 17 - 30 - 60 m ) four bandpass filters system

  • Brand: Hamation
  • Product Code: AS-419W
  • Availability: In Stock
  • $649.00
