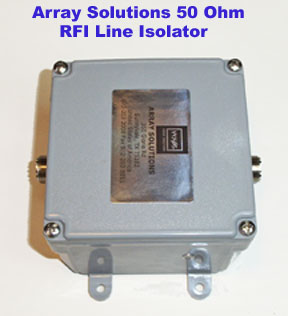

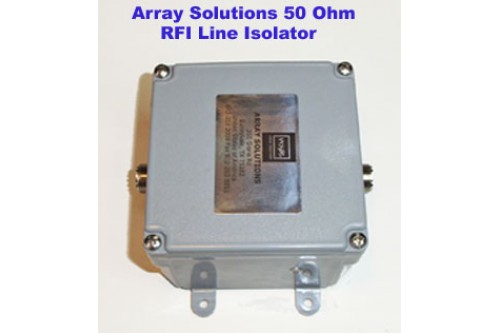

• AS-50-L1 - 50 Ohms RFI Line Isolator, SO-239 connectors, 5 kW CW / 10 kW SSB, 1.8 - 30 MHz




These current devices are based on the W1JR Baluns above. They are used to stop RFI on the outside of a coaxial cable shield from entering a radio shack.  They also are use to isolate vertical feed points to eliminate coaxial cable RF pickup.

Key Benifits:

  • Feedline is decoupled from a vertical antenna radial system
  • Rejects feedline radiation into sensitive areas of the radio room
  • Perfect for raised radial systems to prevent feedline from coupling to the radials

Features:



  • 50 Ω unbalanced to 50 Ω unbalanced current isolator
  • Rated for 5 kW CW and 10 kW SSB, these isolators offer the same quality as our well known W1JR baluns.
  • VSWR 1:1 for 50 ohm devices
  • Teflon SO-239 on either side of the box, also available in N-type and 7/16DIN
  • 4" x 4" x 2" NEMA 4X Sealed boxes

AS-50-L1 - 50 Ohms RFI Line Isolator, SO-239 connectors, 5 kW CW / 10 kW SSB, 1.8 - 30 MHz

  • $189.00
