Description

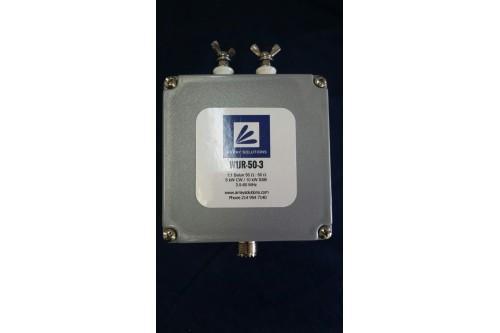

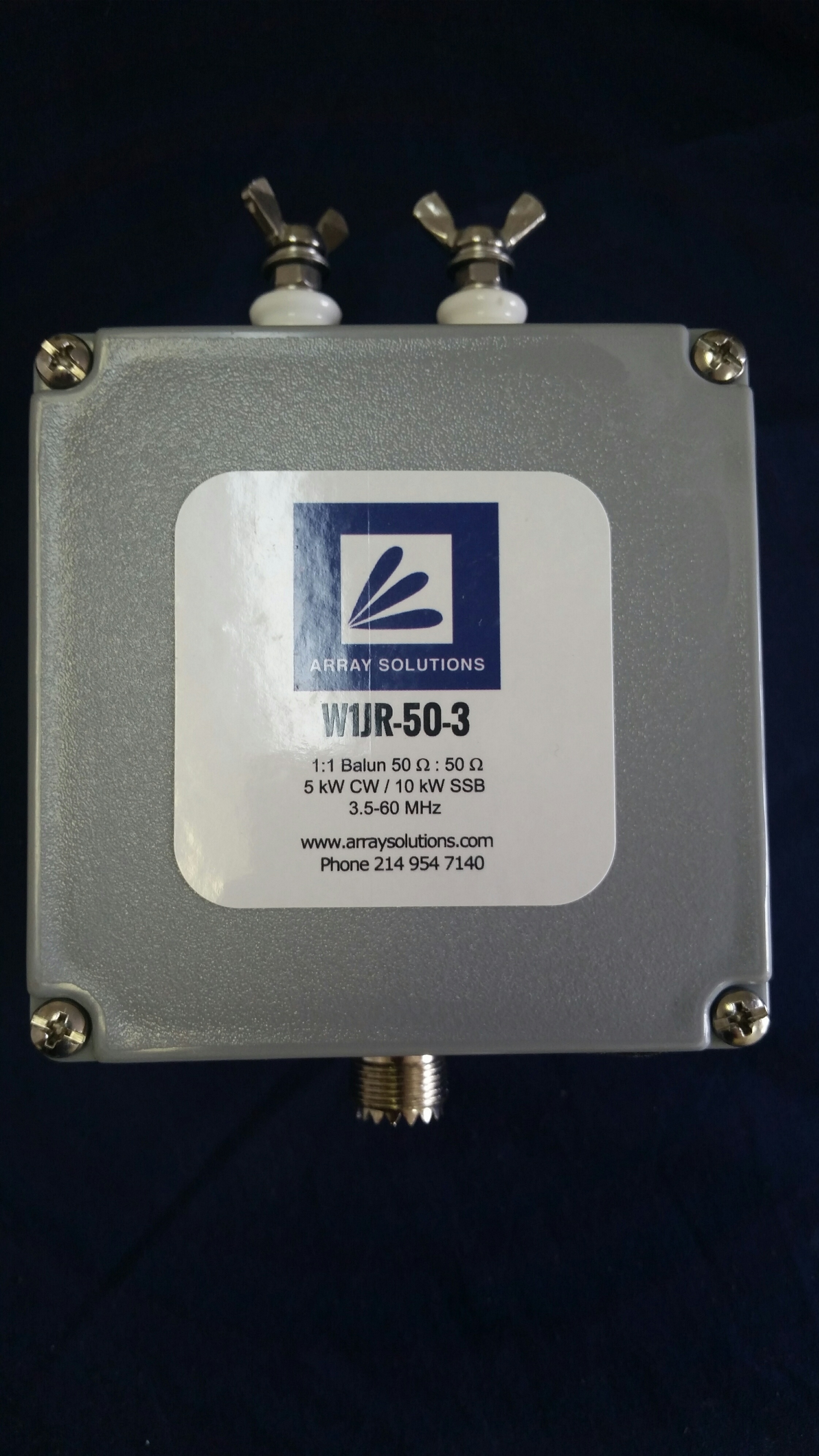

W1JR-50-3 - 1:1 Balun 5 kW / 10 kW PEP, SO-239 connector, 3.5 - 60 MHz.

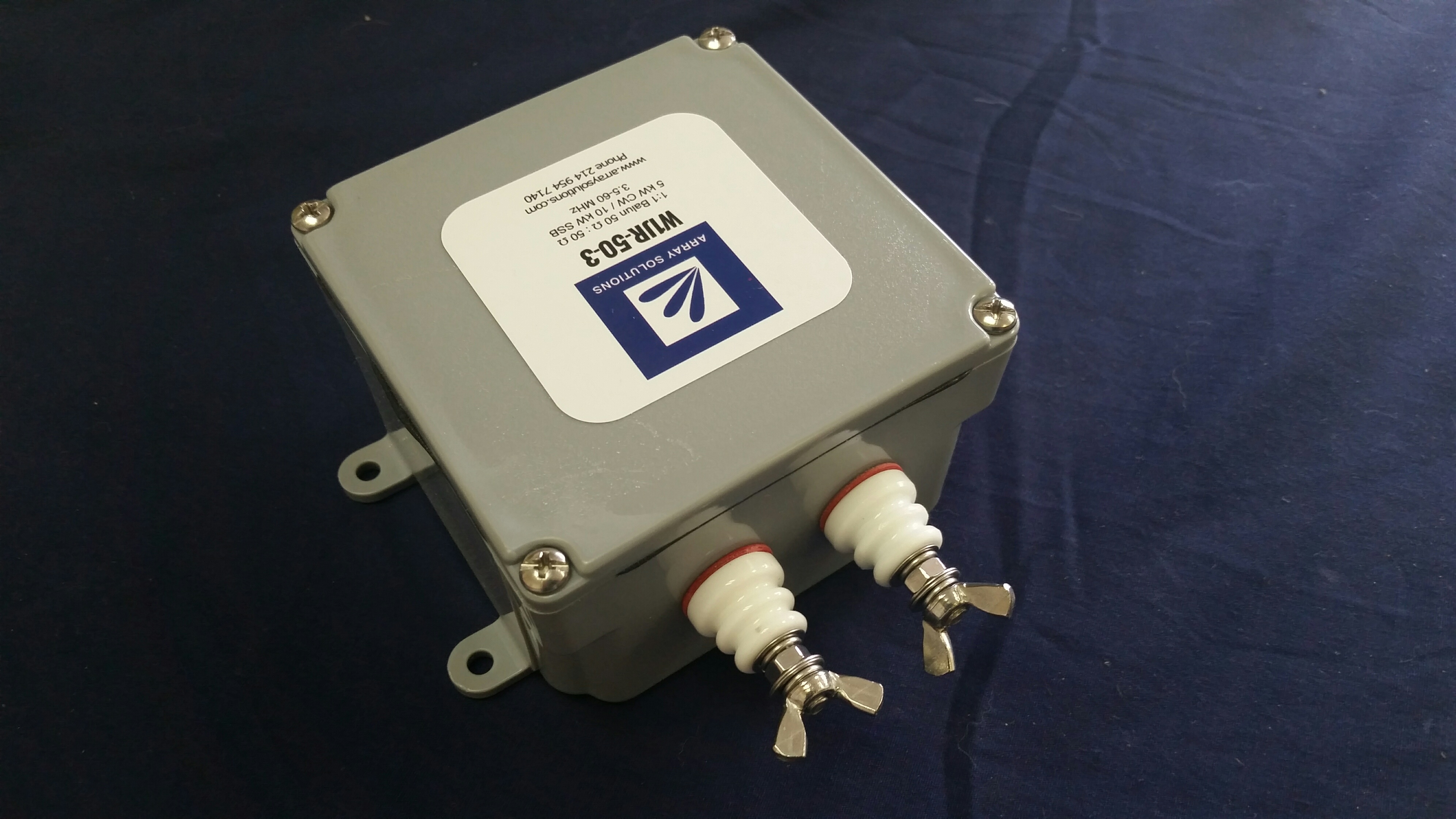

Baluns sealed in a weatherproof cast iron box, with an SO-239 (or optional type N or 7/16 DIN) input connector and two #10 stainless steel bolts with wing nuts output connections.

Frequency range: 3.5 to 60 MHz

Power Rating: 5 kW CW / 10 kW SSB

Size: 7" x 3.5" x 2.25" (178 mm x 89 mm x 63.5 mm) including wing nuts

Weight: 1.6 lb (0.70 kg)

For more information on our baluns, click here

W1JR-50-3 - 1:1 Balun 5 kW CW / 10 kW PEP SO-239 connector, 3.5 - 60 MHz

Brand: Array Solutions
Product Code: W1JR-50-3
Availability: In Stock

$140.00

Qty

Tags: 1to1, un-un transmission line transfor, 1 to 1, txfmr, 50 ohm, 1-to-1, unun, line transformer, 50ohm, w1jr, w1jr-50, bal-un, baluns, 1:1, balun, W1JR-50-3, w1jr-50-3

W1JR-50-3 - 1:1 Balun 5 kW CW / 10 kW PEP SO-239 connector, 3.5 - 60 MHz

$140.00
