BandMaster V. Universal Radio Band Decoder System with Relay Drivers.
The BandMasterV will not control the EightPak or the 4x8-Pak.
The BandMasterV is for hard wired switches like SixPak, RatPak, DXE, etc.
The SM-8- ShackMaster is for the EightPak and 4x8-Pak switches.
Features
- Jumper free configuration
- No configuration software required
- RS-232, CI-V and Band Data interfaces
- USB may be connected directly to Flex SDR radios
- Generates ICOM CI-V data stream from non-ICOM radios
- Generates Yaesu/Kenwood data streams from ICOM radios and band data.
- Automatic acquisition of CI-V address for ICOM radios
- Built-in USB interface
- Direct USB connection to Flex SDR radios
- Bi-directional band data interface
- Set automatic antenna selection for each band
- 12 relay outputs with up to 16 different configurations
- Field upgradeable firmware
- Anodized aluminum case
- Laser engraved panels
- Dimensions (HWD) 1.4" x 6.7" x 6.7" (35.6 mm x 170.2 mm x 170.2 mm)
- Weight 1.2 pounds (0.54 kg)

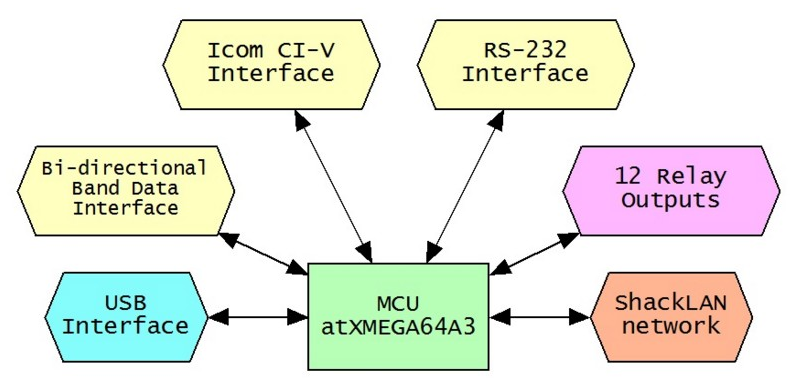

BandMaster V Block Diagram

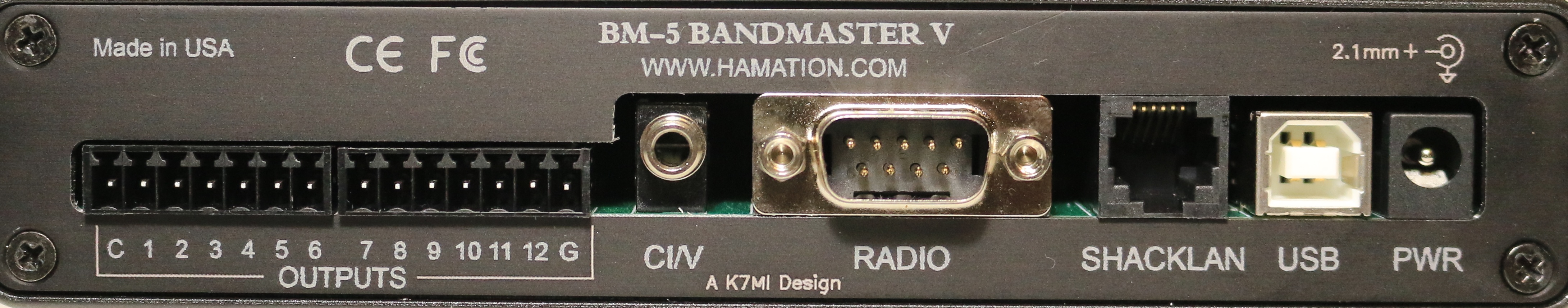

The USB interface may be connected to your PC for radio control. The USB interface may be connected directly to a Flex SDR with no additional cables or interfaces required.
The BandMaster V contains a fully bi-directional band data interface. The band data interface operates in input mode when using band data from a Yaesu or Elecraft radio. When operating in band data mode the BandMaster V will output data on both the CI-V and RS-232 interfaces with the frequency fixed to the middle of the current band. The band data interface operates in output mode when any of the other data interfaces are used for your radio.

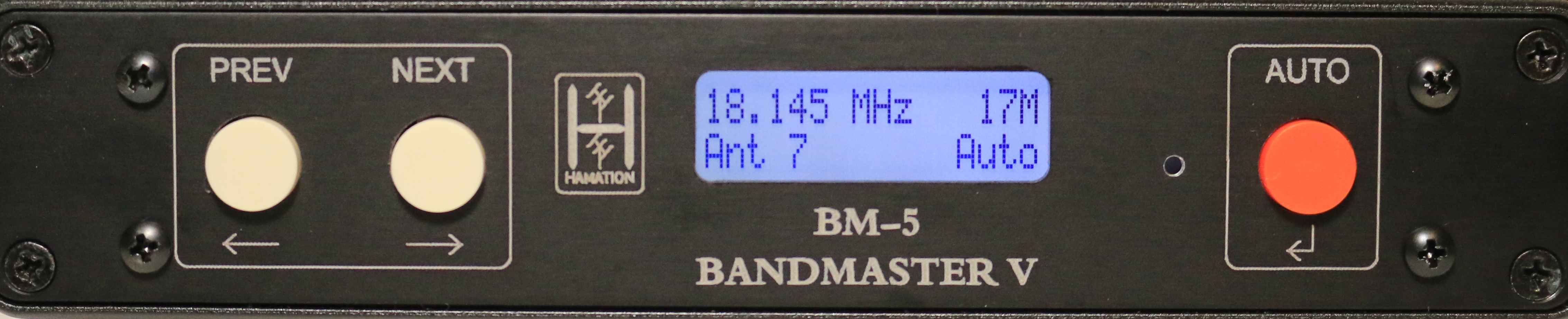

Configuring the BandMaster V is easily done from the front panel. No PC software is required. Antennas are easily assigned to each band. No diode matrix is needed for antennas used on multiple band.
The BandMaster V has 12 relay outputs which can configured in up to 16 different combinations. Any combination may be assigned as the default antenna for each band.
FLEX Radio Users, this was taken from the Flex Radio Community post by W2PP
Hook your USB cable from the Bandmaster DIRECTLY to the Flex 6700
Power on the Bandmaster, go to setup, go to setup radio, choose Flex Radio (knwd) ...that's how it looks
Go to SmartSDR, go to settings ( top of screen on left ), choose USB Ports
pick one and setup a CAT connection. Choose "TX SLICE" do NOT touch the default baud rate or bits, the radio and Bandmaster both default to 9600, 8,N,1
Go back to the band master, you should now see band data.
Go back to setup, then assign the antennas per band. You'll do that by walking through the bands in SmartSDR, the bandmaster will follow you, assign the appropriate number...where you tied your antenna to the back of the bandmaster, to each band. Its a OK if you have a multiband beam to assign multiple bands to that beam.
Your done.
Enjoy
Peter
W2PP

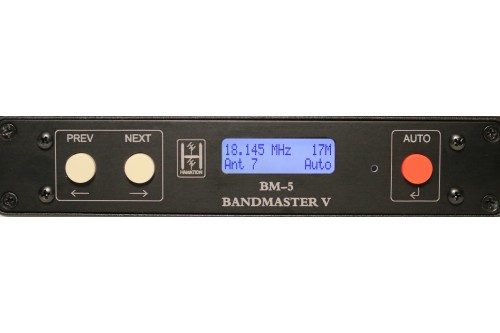

BandMaster V - Universal Radio Band Decoder System and Antenna Switch Selector.
- Brand: Hamation
- Product Code: BandMaster V
- Availability: In Stock
-
$395.00
