The Hamation ShackLAN EI-2 Ethernet Interface provides two independent remote Ethernet connections to allow control of all ShackLAN devices. The remote connections may be operated in parallel with ShackLAN Control Center running on a local computer and connected to the USB connector. IP address and ports are fully configurable by the user.

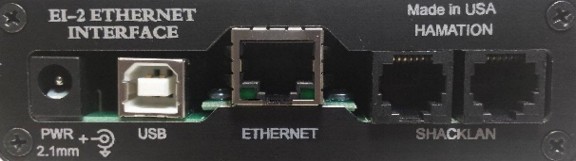

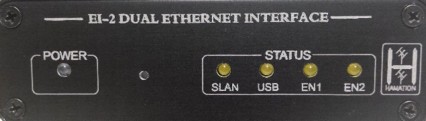

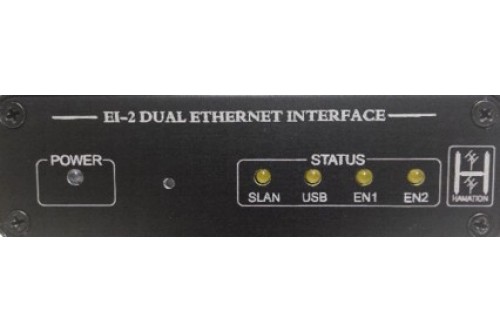

EI-2 Front and Rear Views
Allows two independent remote connections
User configurable IP address and port numbers
Simultaneous control of ShackLAN device via Ethernet and USB
Rugged anodized aluminum case with laser engraved panels
Custom panel labeling available
Connecting power to the EI-2 interface may be done by supplying 12 V DC to the power jack or from other ShackLAN devices via the network connector. A power cable is included to connect to your station power supply. The white stripped wire is positive and the solid black wire is negative (ground).
Connecting to other Shacklan Devices
The EI-2 interface may be connected to other ShackLAN devices such as other controllers, band decoders, stack controllers, etc. Connection to other devices may be made using the ShackLAN RJ-12 (modular) jacks using 6-wire modular cables. The two ShackLAN jacks are in parallel and either or both may be used to connect to other devices.
