OM-6BPF, six filters in one box. BPF for 10 - 15 -20 - 40 - 80 - 160 m bands. Can be used in conjunction with the OM Power automatic amplifiers for automatic selection of filters in your station.
Ships direct from OM Power.

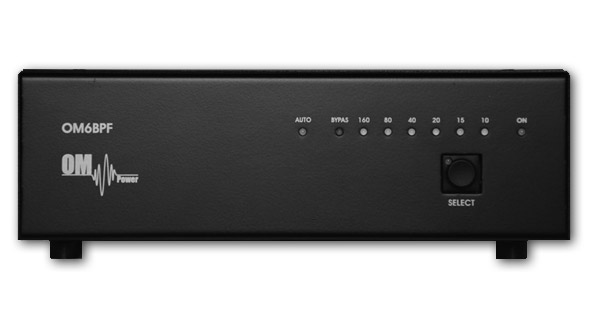

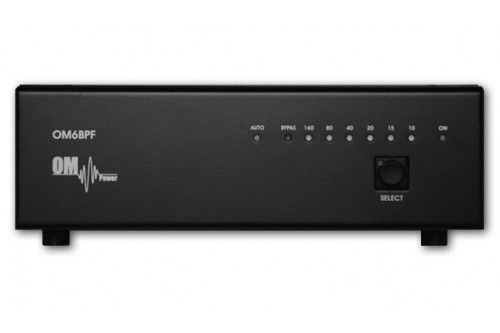

Front view

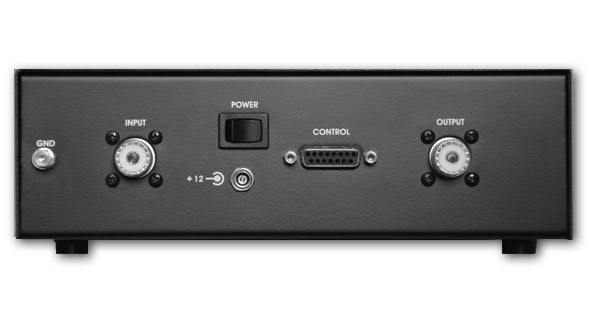

Rear View

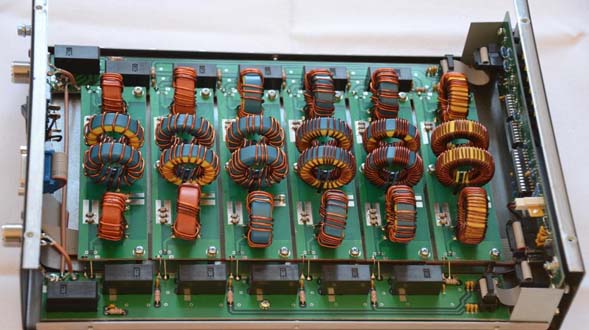

Inside view of the OM6BPF
Specifications
| Frequency coverage | Amateur bands 1.8 – 29.7 MHz except WARC bands |
| Power rating | 200 W in SSB, CW, RTTY, AM and FM |
| Impedance | 50 ohm unbalanced |
| SWR | < 1.2 : 1 across the band |
| Selection methods | Automatic with Yaesu, Icom, Elecraft, OM Power Automatic amps, band decoders |
| Power supply | 12 V DC |
| Dimensions (W x H x D) | 210 mm x 75 mm x 320 mm (8.27" x 2.95" x 12.6") |
| Weight | 2.3 kg (5.07 lb) |
| Design | 3 pole filters |
| LED indicators | Automatic mode |

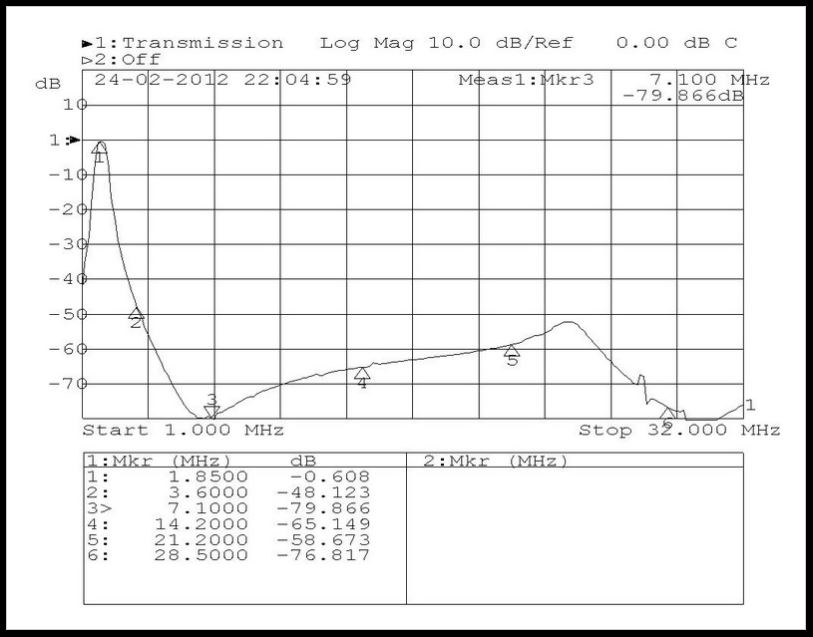

Insertion Loss plot for 160 m

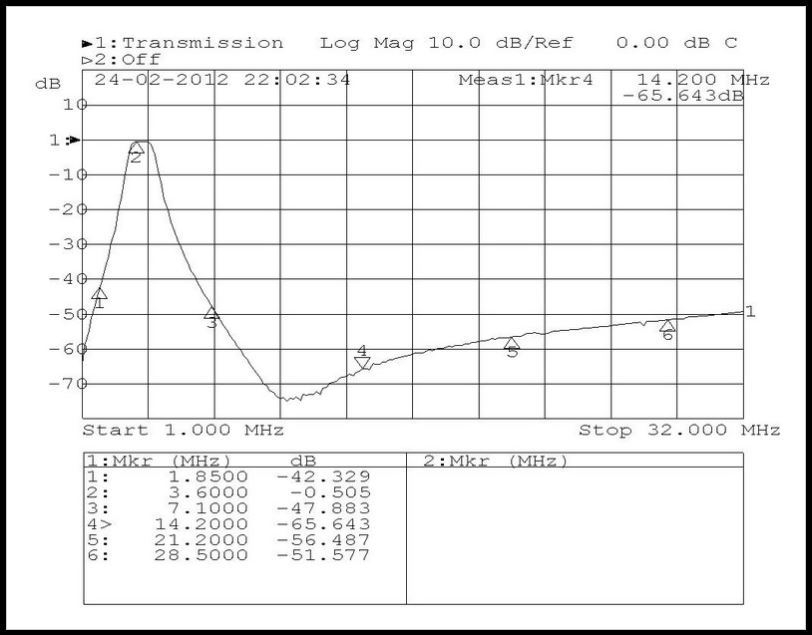

Insertion Loss plot for 80 m

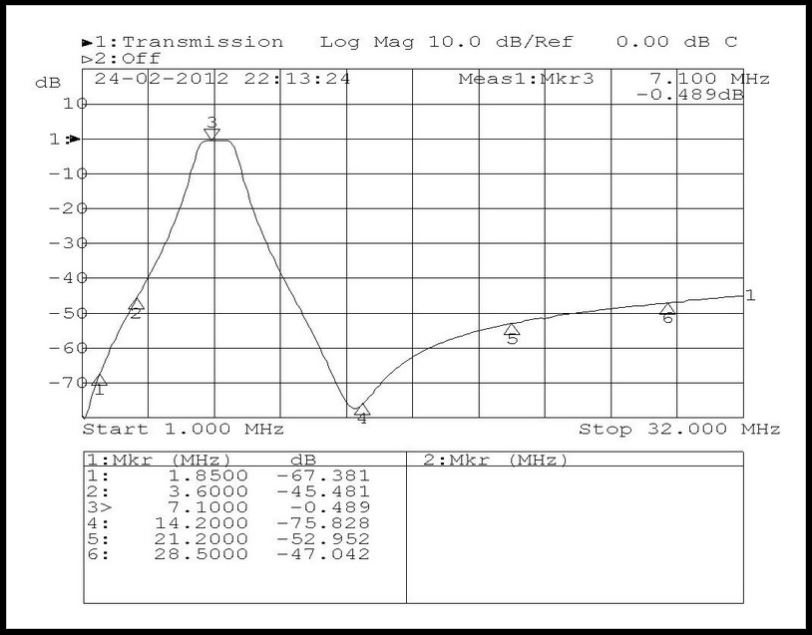

Insertion Loss plot for 40 m

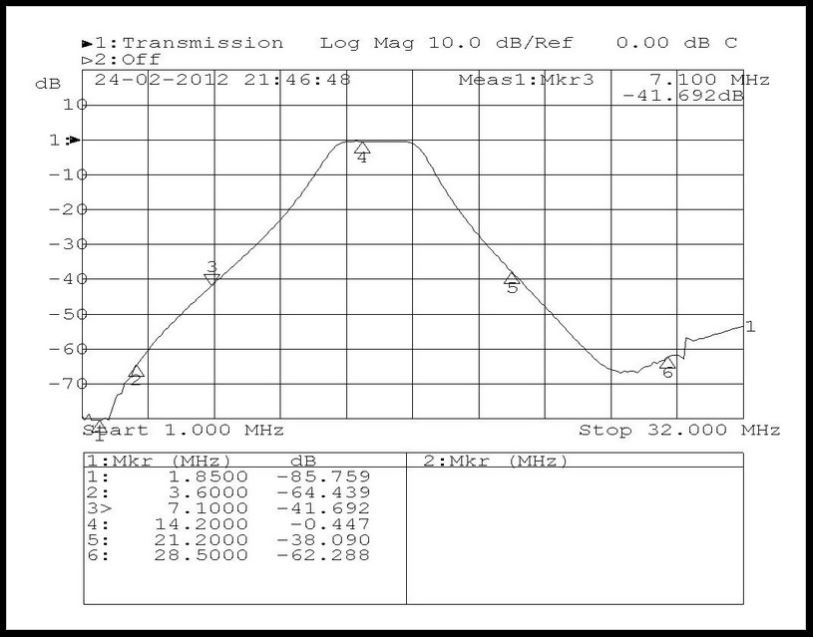

Insertion Loss plot for 20 m

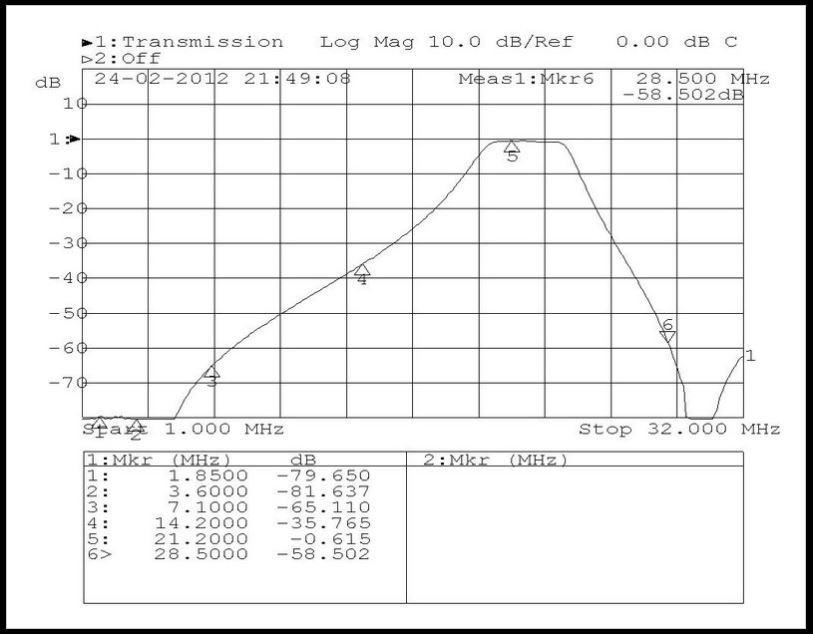

Insertion Loss plot for 15 m

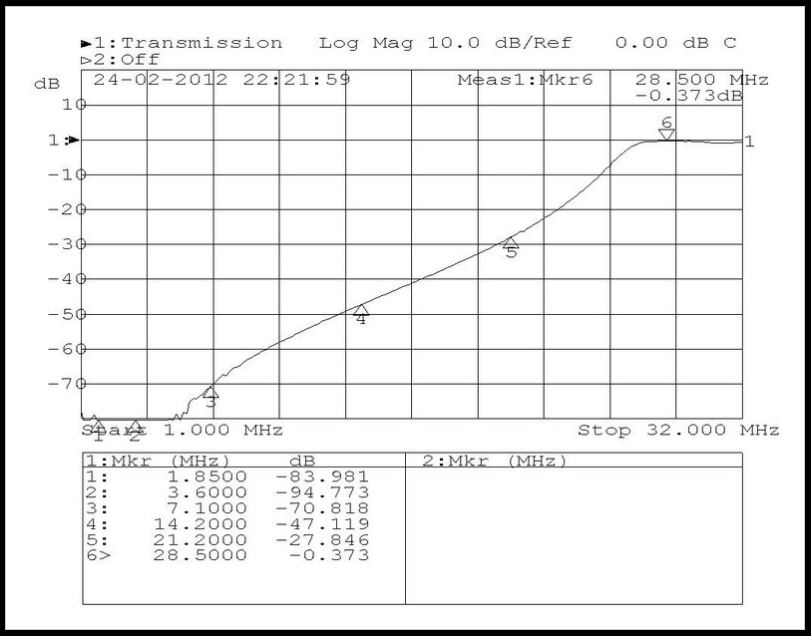

Insertion Loss plot for 10 m

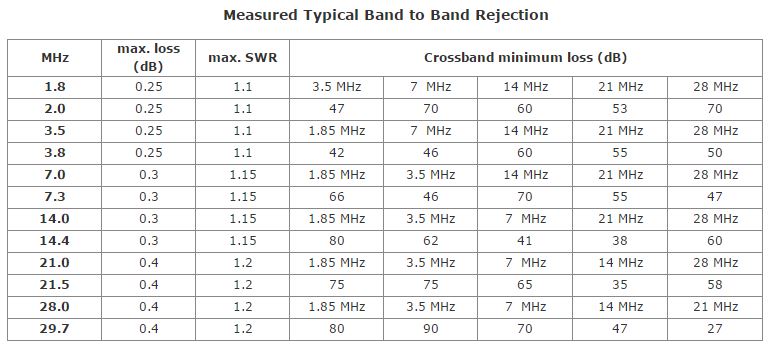

Band to Band Rejection
To download the manual, click here
OM Power OM-6BPF - Six bandpass filter system
- Brand: OM Power
- Product Code: OM6-BPF
- Availability: In Stock
-
$1,475.00
