200 W CW / 400 W SSB Band Pass Filter for 12 m

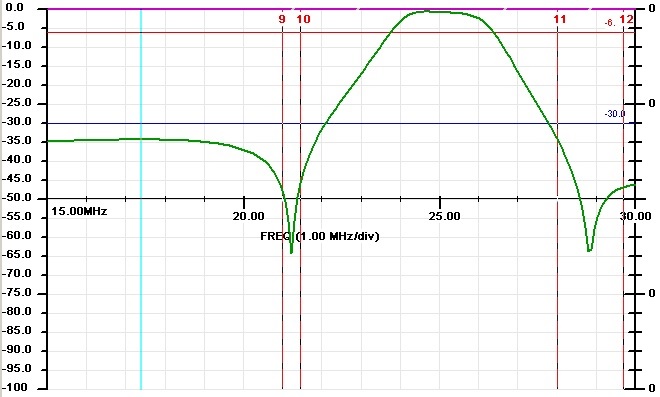

Insertion Loss (S21) plot
To see more about W3NQN filters, click here
Dimensions: 5.25" x 3" x 2.125" (134 mm x 76.2 x 54 mm)
Weight: 0.8 lb (0.363 kg)

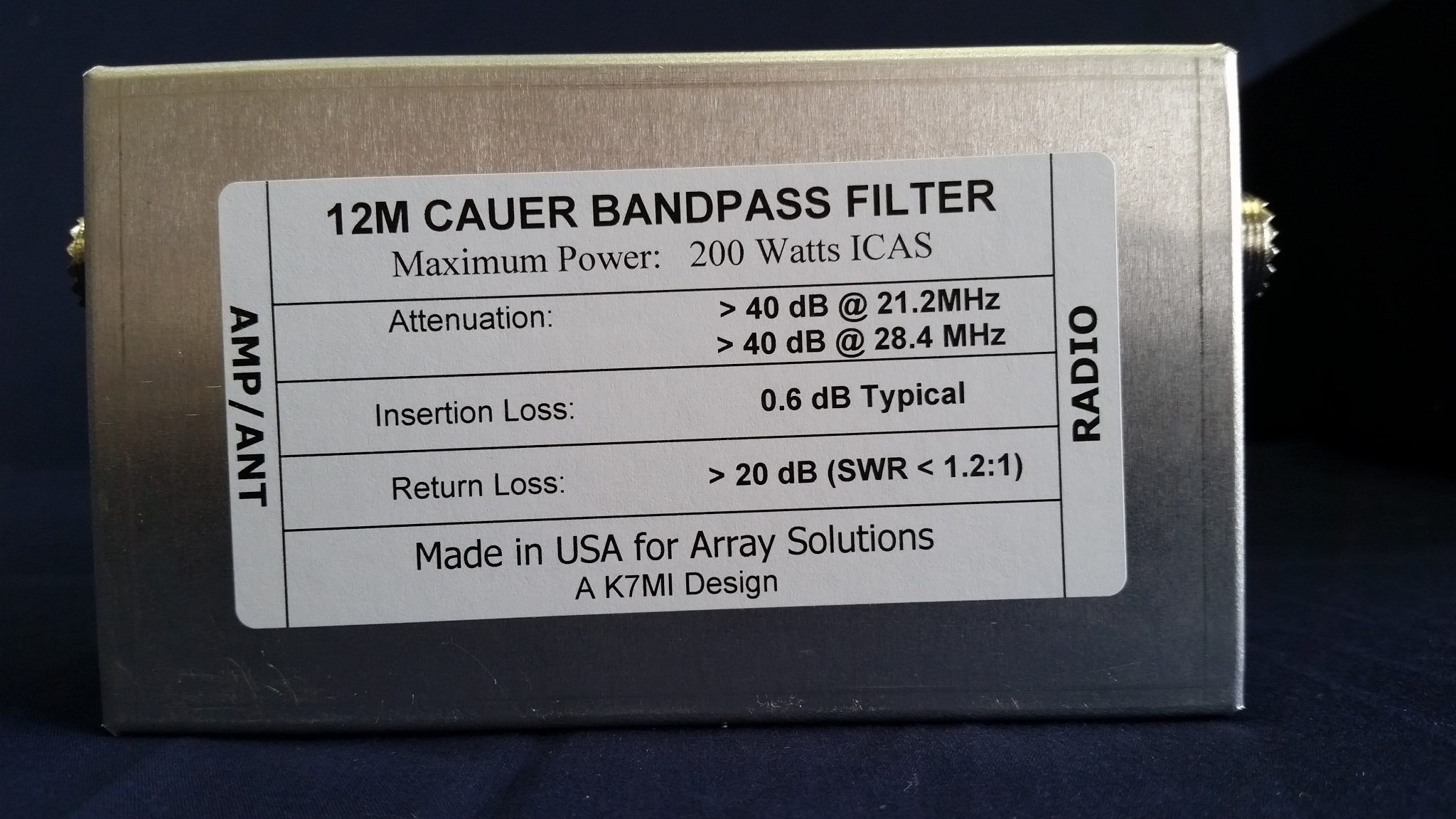

W3NQN Design mono band Cauer Elliptical filter for the 12 meters band by K7MI
- Brand: Array Solutions
- Product Code: W3NQN 12 m
- Availability: In Stock
-
$131.00
