PRICE INCLUDES SHIPPING TO YOUR DOOR
2000 W output HF and 6 m manual tuning amplifier. Ham bands from 1.8 MHz to 54 MHz.

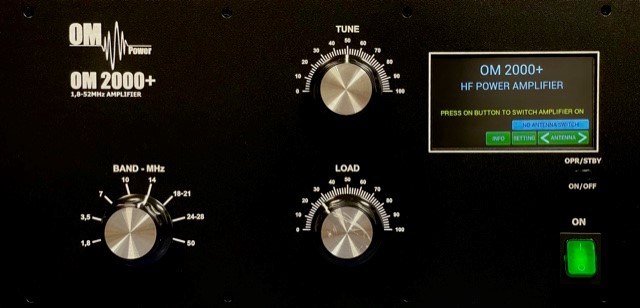

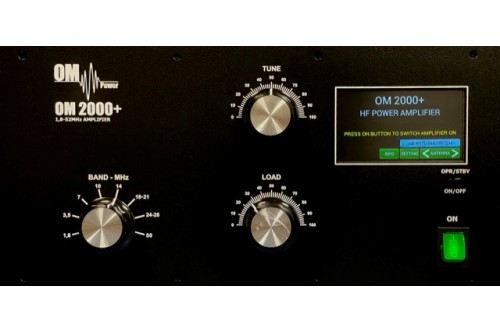

New design with touch screen , One antenna output , but with BCD output for antenna switch OM SW 1/10+ and OM6BPF .
The firmware
can now be updated via the RS232 – serial port.

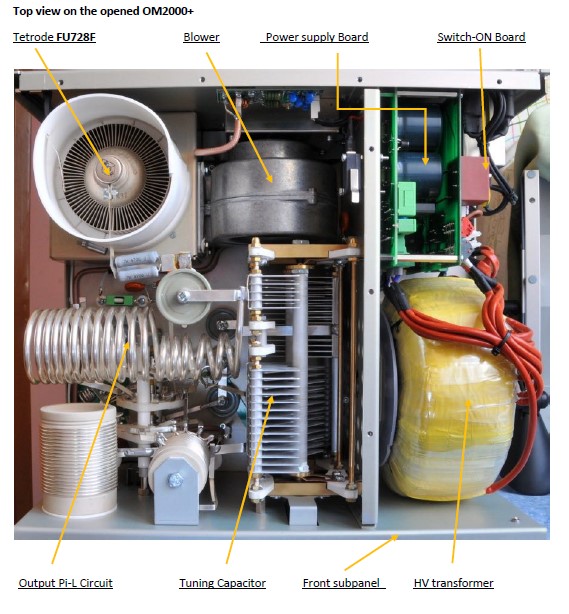

The OM2000+ linear amplifier is designed for all short wave amateur bands from 1.8 to 29 MHz (including WARC – bands) + 50 MHz and all modes. It is equipped with a ceramic tetrode FU-728F. Full QSK-ready.
Specifications of the OM2000+:
| Frequency coverage: | Amateur bands 1.8 – 29.7 MHz including WARC + 50 MHz |
| Power output: | 2000+ W in SSB/CW on HF bands, 1500 W CW/SSB on 50 MHz 1500 W in RTTY |
| Input power: | 40 to 60 W for full output power |
| Input impedance: | 50 Ohm VSWR < 1.5 : 1 |
| Output amplification: | 15 dB |
| Output impedance: | 50 Ohm unbalanced |
| Maximum output SWR: | 2:1 |
| SWR protection: | Automatic switching to STBY when reflected power is 250 W or higher |
| Intermodulation distortion: | 32 dBc |
| Suppression of harmonics: | min -50 dBc (30–54 MHz better than 70 dBc) |
| Tube: | FU-728F Ceramic Tetrode |
| Cooling: | Centrifugal blower + axial blower |
| Power supply: | Can be wired for 220, 230 or 240 V – 50/60 Hz |
| Transformers: | One toroidal transformer 3 kVA |
| Protection circuits: | - High SWR |
| - High Anode current | |
| - High Screen current | |
| - High Grid current | |
| - Mistuning of the power amplifier | |
| - high Temperature | |
| - Soft start for fuse protection | |
| - Switch–on is blocked when cover is removed (dead man switch) | |
| Indications: | - OLED display 4 lines x 20 characters |
| - Analog 2 systems meter for forward and reflected power | |
| LED indicators: | - ON status |
| - STBY– standby | |
| - FAULT – warnings and faults indicator | |
| - ON AIR – amplifier in transmitting status | |

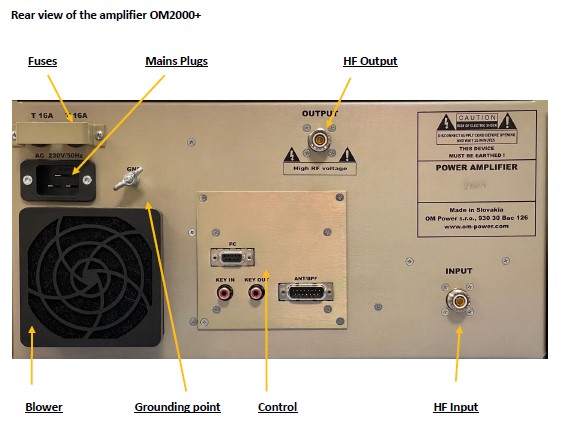

| Features: | - Built-in antenna switch for 3 antennas (SO-239) |
| - Memory for faults and warning, easy maintenance | |
| - Automatic set-up anode current (BIAS) – no need to manually adjust it after changing the tube | |
| - Temperature controlled two-speed centrifugal blower (turbine ) + axial blower | |
| - Full QSK with silent vacuum relay (10 ms switching speed) | |
| - The smallest and most compact 2000 W linear HF/6 m amplifier in the market | |
| Mechanical parameters: | 390 mm (15.4") W x 195 mm (7.7") H x 370 mm (15.6") D |
| Weight: | 24 kg (53 lb) |
OM-2000+ 2022 user's manual
To download the OM2000A+ manual for analog models click here
Tuning Procedure for the OM Power 2000+
Schematics for OM Power 2000+ Amplifier
OM Power OM-2000+ - Heavy Duty Legal Limit HF and 6 m Manual Tune Amplifier - 160 - 6 m. Full QSK-ready.
- Brand: OM Power
- Product Code: OM-2000+
- Availability: 3 Weeks
-
$4,825.00
