Dual Push Button controller for Sixpak with Shacklan Network for antenna selection automation.
| Measurement | 14Mhz | 30Mhz | 50Mhz |
Comment |
| Radio to Radio Isolation | -82 dB | -80 dB | -77 dB | signal inserted in one port to antenna buss, second radio port measured |
| Radio to Antenna Isolation | -60 dB | -55 dB | -50 dB | signal connected to antenna on one side, then opened for measurement |
| Insertion Loss Radio to any Antenna port | .05 dB | .05 dB | .2 dB | signal inserted into antenna port and measured at radio port |
| SWR Radio to any Antenna port | 1:1 | 1:1 | 1.15:1 | |
| Power Rating all modes CW, SSB, RTTY | 5 KW | 5 KW | 3 KW | This measurement is calculated not made |

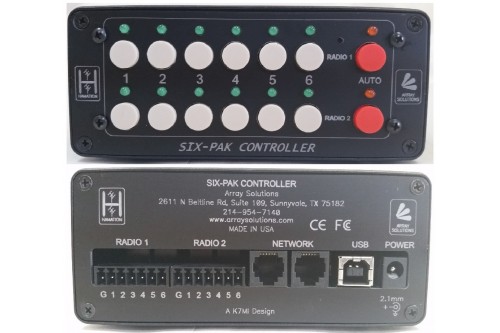

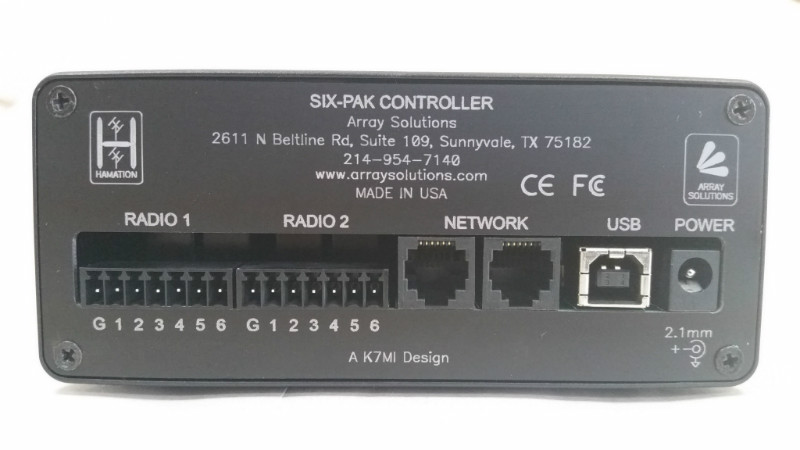

SixPak Dual Push Button Controller with Shacklan Network Connection and USB
- Brand: Hamation
- Product Code: SixPak-PBC
- Availability: In Stock
-
$311.00
