Description

Six antennas shared by two radios remote switch system, with N connectors. Requires a controller. Lock-out system will not allow that one antenna is selected by the two radios at the same time. Isolation: 60 dB.

Measurement	14Mhz	30Mhz	50Mhz	Comment
Radio to Radio Isolation	-82 dB	-80 dB	-77 dB	signal inserted in one port to antenna buss, second radio port measured
Radio to Antenna Isolation	-60 dB	-55 dB	-50 dB	signal connected to antenna on one side, then opened for measurement
Insertion Loss Radio to any Antenna port	.05 dB	.05 dB	.2 dB	signal inserted into antenna port and measured at radio port
SWR Radio to any Antenna port	1:1	1:1	1.15:1
Power Rating all modes CW, SSB, RTTY	5 KW	5 KW	3 KW	This measurement is calculated not made

Controller options for the SixPak system:

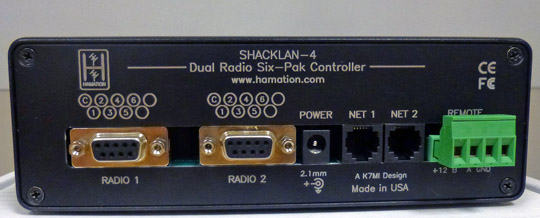

Dual Rotary Controller. Serves up to two radios.

RatMaster: Push button controller with integrated band decoder. One needed per radio.

Dual Push Button controller. Serves up to two radios.

Two RatPak push button controllers can be used instead of the dual rotary switch or the dual push button controller. One needed per radio.

The Bandmaster III will perform the automatic selection of your antennas and switching of relays.

The Bandmaster IV can be used with the Dual and single push button controllers to extract the band data from the transceiver and automatize the antenna selection. The Bandmaster IV used in conjunction with an existing push button controller (no band decoding) will perform the same functions as a Ratmaster.

To download the SixPak Manual, click here

To download the Bandmaster III manual, click here

Para Descargar el manual del Bandmaster III en español, click aquí

To download the Bandmaster IV Manual, click here
