Description

W1JR-50-1 - 1:1 Balun 5 kW / 10 kW PEP, SO-239 connector, 1.0 - 54 MHz.

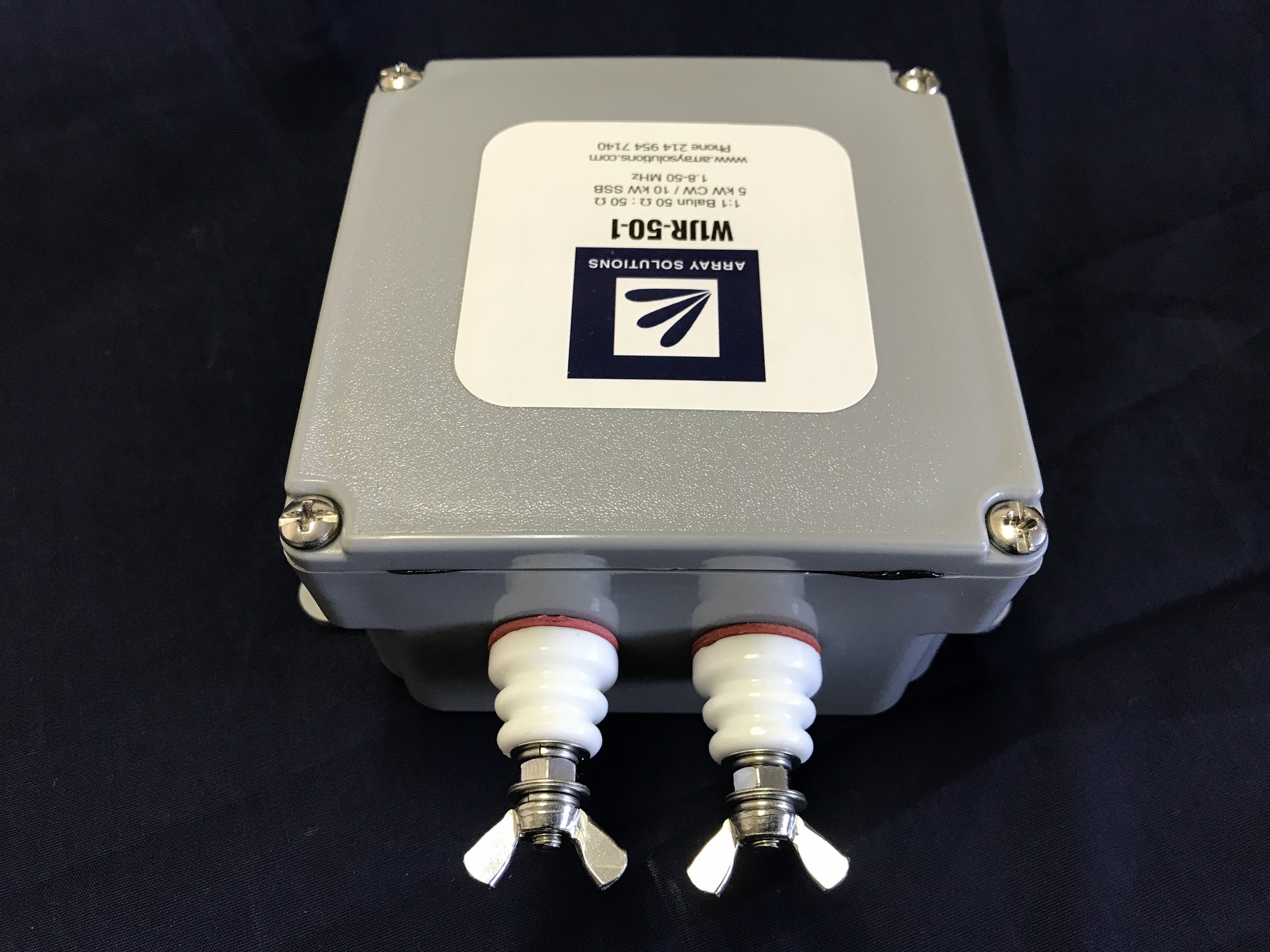

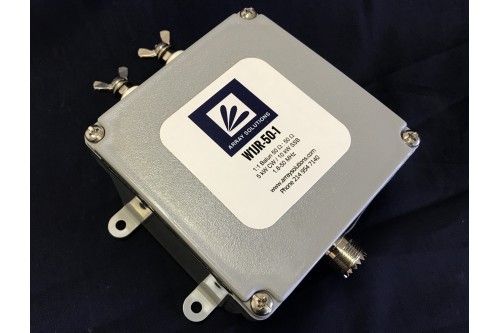

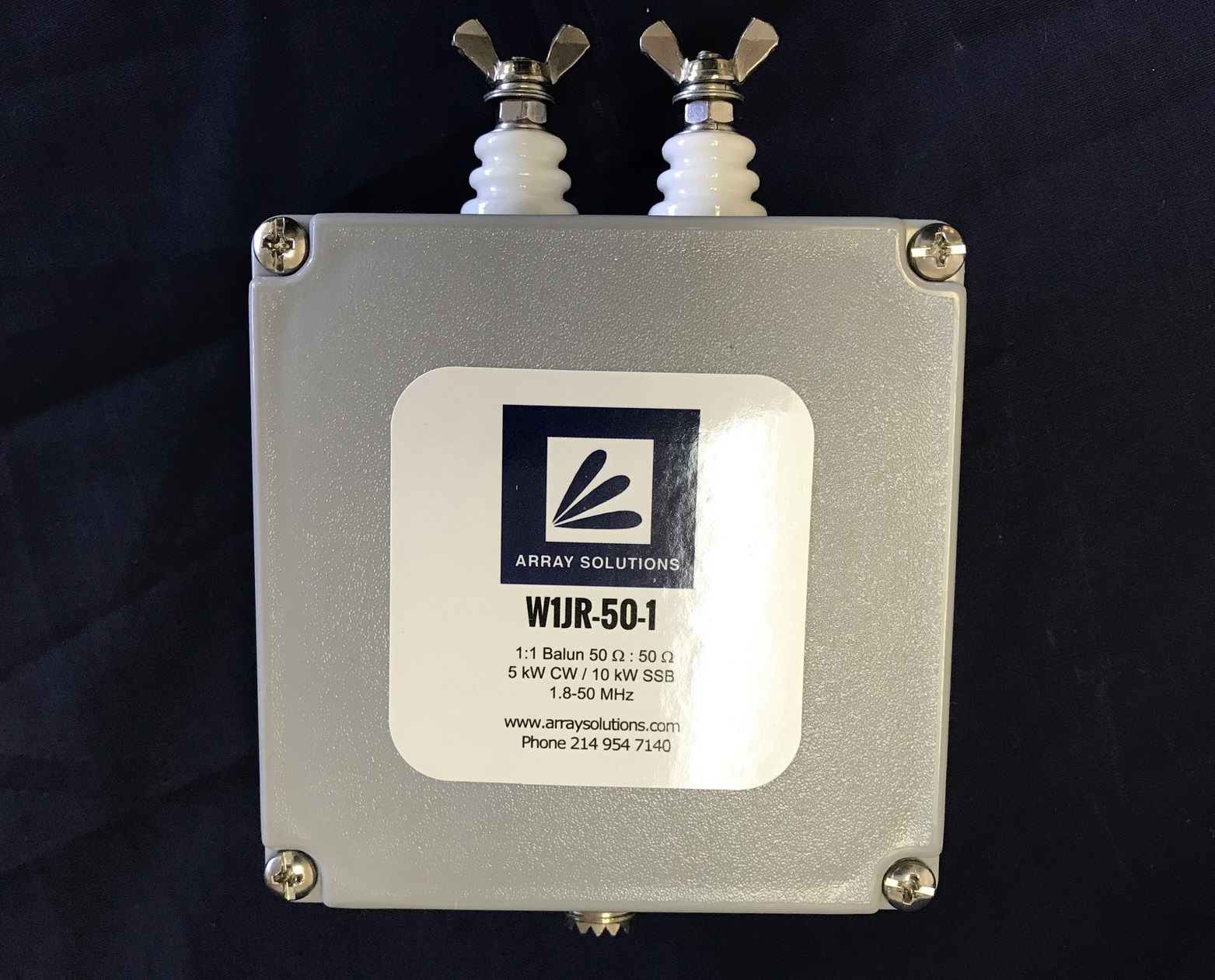

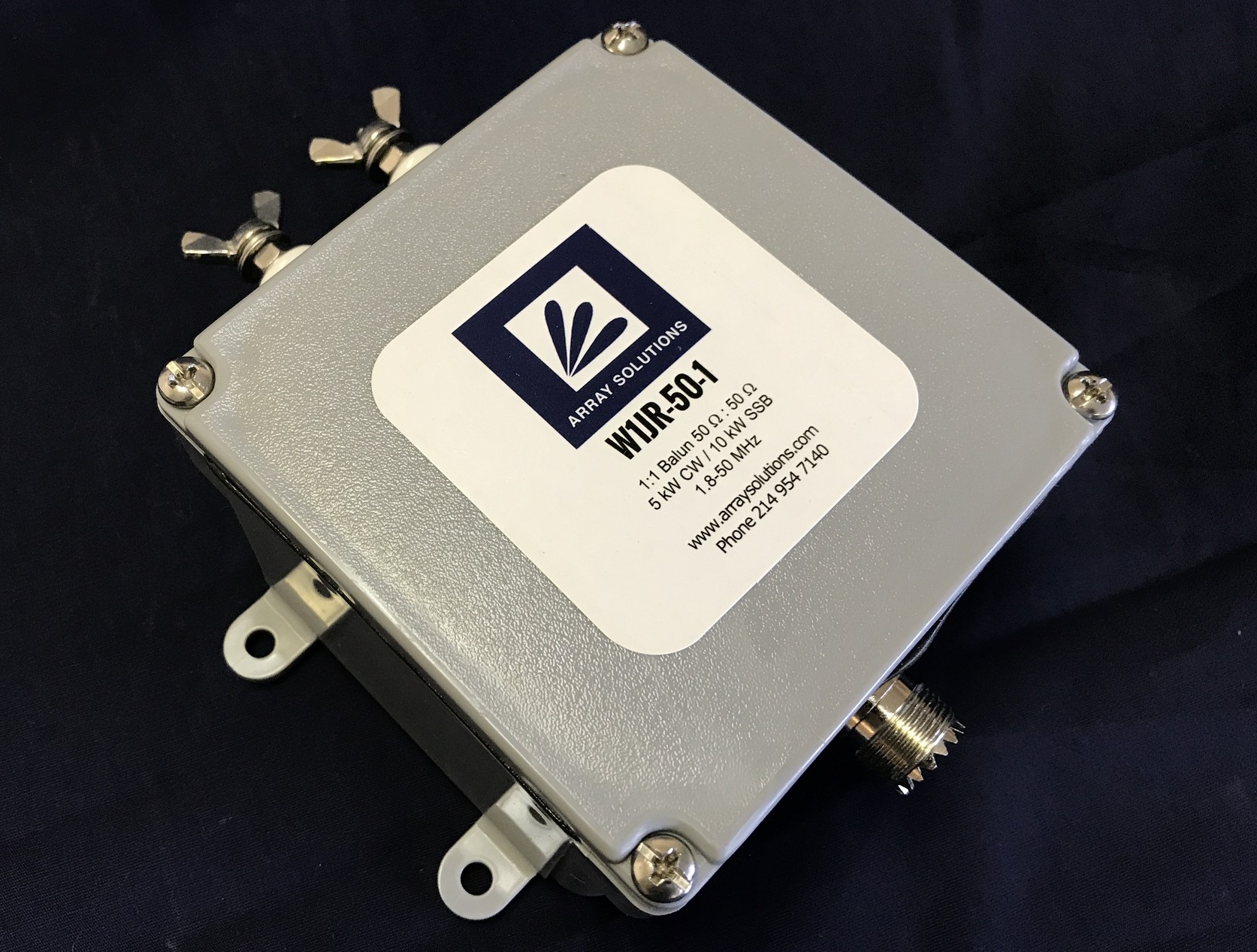

Baluns sealed in a weatherproof cast iron box, with an SO-239 (or optional type N or 7/16 DIN) input connector and two #10 stainless steel bolts and wingnuts output connections.

Frequency range: 1.0 to 60 MHz

Power Rating: 5 kW CW / 10 kW SSB

Size: 4" x 4 " x 2.25" (102 mm x 102 mm x 63.5 mm), including wing nuts (See picture below for back plate and hole pattern dimensions)

Weight: 1.6 lb (0.7 kg)

ALSO AVAILABLE IN DIN - CALL FOR PRICE

For more information on our baluns, click here

W1JR-50-1 - 1:1 Balun 5 kW / 10 kW PEP, SO-239 connector, 1.0 - 60 MHz.

Brand: Array Solutions
Product Code: W1JR-50-1
Availability: In Stock

$171.00

Qty

Tags: 50 ohm, 1to1, line transformer, 1 to 1, bal-un, 1-to-1, balun, transmission line transformer, w1jr, unun, txfmr, 1:1, 50ohm, w1jr-50, w1jr-50-1, antenna center, W1JR-50-1

W1JR-50-1 - 1:1 Balun 5 kW / 10 kW PEP, SO-239 connector, 1.0 - 60 MHz.

$171.00
